Edge AI-Based Forward Collision Warning System (Mini ADAS)

Course Instructor: Professor. Arjunan Pandarasamy

Team: G. Praveen Kumar (27480) · Harshith L (25823) · Ramavath Ramadas (26671) — IISc Bangalore

GitHub: https://github.com/pkgollapalli/Edge-AI-Based-Forward-Collision-Warning-System-Mini-ADAS-

Demo Video: https://drive.google.com/file/d/17ozvJKcGhI04Ee1GiV4t7_XwOYlB_EYV/view?usp=drive_link

PPT Video: https://drive.google.com/file/d/17GXxgrqTHWVSV52N6DIeY0MZCtL3C4Rx/view?usp=sharing

1. Problem Statement, Motivation & Objectives

India records over 4.6 lakh road crashes per year, killing 1.7 lakh people annually. Rear-end collisions are among the top contributors — at 40 km/h a distracted driver covers 20 metres before reacting. Modern Forward Collision Warning (FCW) systems exist in premium cars but are completely absent from the vehicles that need them most: two-wheelers, autorickshaws, school buses, and older cars — over 90% of Indian road traffic. All major public ADAS datasets (KITTI, BDD-100K, Waymo Open) are from Western roads and are blind to Indian-specific objects: autorickshaw recall is 0%, bicycle recall is 2.7%, and zebra crossing recall is 0% when using any off-the-shelf COCO-pretrained model on Indian footage.

Why Edge AI is mandatory for ADAS: Cloud round-trip latency from Bengaluru to a public broker is ~280 ms (measured live via ThingsBoard MQTT), while the airbag deployment deadline is 30 ms and the AEB deadline is 100 ms. Cloud-only ADAS physically cannot meet these safety budgets. India’s DPDP Act 2023 also restricts streaming raw cabin/road video off the device. This system is vehicle-agnostic: the same ₹12,000 hardware deploys on a bicycle, autorickshaw, bus, or truck — a miniaturised version of the edge AI architecture used in Tesla FSD (INT8 on AI4 SoC) and Waymo (multi-sensor, fully on-vehicle inference).

Key Objectives:

  • Build a real-time forward collision warning system on Raspberry Pi 5 with zero cloud dependency
  • Demonstrate 52× model compression via Knowledge Distillation + INT8 quantisation with less than 6% accuracy loss
  • Fine-tune YOLOv8n on IIT Hyderabad DriveIndia dataset to recover Indian-specific classes from 0% COCO recall
  • Deploy a 3-model INT8 ensemble (COCO + DriveIndia + Pothole) at real-time speed on CPU-only hardware
  • Empirically prove edge-AI latency advantage over cloud using live ThingsBoard MQTT round-trip measurement

2. Proposed Solution

Three INT8-quantised YOLOv8n models run in series on every camera frame. Detections are merged via class-wise NMS, combined with HC-SR04 ultrasonic distance and closing-speed to compute Time-To-Collision (TTC), and fused into a SAFE / WARN / BRAKE decision that drives GPIO LEDs and a buzzer. Telemetry is pushed to ThingsBoard over MQTT for IoT monitoring and live edge-vs-cloud latency proof.

System Pipeline:

Pi Camera Module 3  (640×640 frame)
         │
         ├──► COCO YOLOv8n INT8       (3.2 MB,  55 ms)  →  car, person, bus, truck, bicycle
         ├──► DriveIndia YOLOv8n INT8 (3.1 MB,  49 ms)  →  autorickshaw, ambulance, zebra, police
         └──► Pothole YOLOv8n INT8    (10.9 MB, 122 ms)  →  road potholes
                       │
              Union + class-wise NMS
                       │
              HC-SR04 ultrasonic → distance_cm + closing rate → TTC
                       │
              Fusion: SAFE / WARN / BRAKE
                       │
         ┌─────────────┴──────────────┐
         ▼                            ▼
  GPIO LEDs + Buzzer          ThingsBoard MQTT
  Red=BRAKE  Yellow=WARN      latency · decision · classes
  Green=SAFE                  FP32 131ms vs INT8 55ms (live)

Total pipeline: 227 ms · 1.8 FPS (live measured, 3-model ensemble, Pi 5 CPU, no NPU)

3. Hardware & Software Setup

Hardware

Component Specification
Raspberry Pi 5 16 GB RAM, ARM Cortex-A76 quad-core 2.4 GHz, no NPU
Pi Camera Module 3 Sony IMX708, 12 MP, phase-detect autofocus, CSI
HC-SR04 Ultrasonic ×4 3–400 cm, 5V — 1kΩ+2kΩ voltage divider on ECHO pin
LEDs (Red / Yellow / Green) GPIO 27 / 22 / 5, 220Ω resistors
Piezo Buzzer ×2 GPIO 17, NPN transistor driver
Breadboard + jumpers Dedicated GND wire from Pi pin 6 to rail

GPIO pinout: TRIG=GPIO23, ECHO=GPIO24 (via divider), Red=GPIO27, Yellow=GPIO22, Green=GPIO5, Buzzer=GPIO17

Software

Tool Purpose
Python 3.11, Raspberry Pi OS Bookworm 64-bit Base runtime
TensorFlow Lite Runtime On-device INT8 inference (no full TF needed)
Ultralytics YOLOv8 Training, TFLite INT8 export, NMS
picamera2 Pi Camera Module 3 capture
RPi.GPIO GPIO LED and buzzer control
paho-mqtt ThingsBoard MQTT telemetry
Kaggle T4 GPU Model training and fine-tuning (free tier)
TensorFlow / Keras MobileNetV2 compression study

4. Data Collection & Dataset Preparation

Dataset Source Samples Classes Role
CIFAR-10 Krizhevsky 2009, public 60,000 (32×32) 10 → binary Compression study baseline
COCO 2017 cocodataset.org, CC BY 4.0 118K train 80 YOLOv8n pretrain weights
DriveIndia / TiAND IIT Hyderabad TiHAN (EULA approved) 66,986 images 24 Indian-road fine-tuning
Pothole dataset HuggingFace peterhdd + team labelling ~2,000 images 1 Dedicated pothole head

CIFAR-10 Preparation

Binary split: vehicle (car, truck, ship, plane) vs non-vehicle (bird, cat, deer, dog, frog, horse). Input upsampled from 32×32 to 96×96 for MobileNetV2.

DriveIndia Balanced Subset — subset_driveindia.py

The full dataset is severely long-tailed — autorickshaw appears in less than 2% of frames. A random 5,000-image sample yields only ~50 autorickshaws. Our sampler picks every rare-class image and proportionally samples head classes, guaranteeing ≥200 examples per class. Split: 4,000 train / 1,000 val, packaged with 28-class data.yaml via prep_kaggle.py.

Pothole Dataset

~2,000 images with bounding-box annotations labelled. Fine-tuning conducted starting from the peterhdd HuggingFace checkpoint.

5. Model Design, Training & Evaluation

MobileNetV2 Binary Classifier (Compression Study Baseline)

  • Architecture: MobileNetV2, width multiplier 1.0, input 96×96
  • Training: 30 epochs, cosine LR from 1e-3, batch 128, Kaggle T4, ~15 min
  • Split: 50,000 train / 10,000 val (CIFAR-10 standard)
  • Baseline accuracy: 97.71% at FP32

YOLOv8n COCO

Standard Ultralytics YOLOv8n pretrained on COCO 2017, used as global-class detection head after INT8 export. Live measured on Pi 5: FP32 avg = 131 ms, INT8 avg = 55 ms (ThingsBoard confirmed).

YOLOv8n DriveIndia Fine-tune

  • Base: YOLOv8n COCO checkpoint
  • Data: 5,000-image balanced DriveIndia subset, 28 classes
  • Config: 30 epochs, SGD momentum 0.937, weight decay 0.0005, LR 0.01 cosine, batch 16
  • Augmentation: Mosaic, Mixup (p=0.1), HSV perturbation, horizontal flip
  • Platform: Kaggle T4 — training time: 27 minutes
  • **Results: mAP50 = 0.562 mAP50-95 = 0.455**

Per-class Recall: COCO vs Fine-tuned (2,500 DriveIndia val images)

Class COCO Recall Fine-tuned Change
autorickshaw 0% 85.0% +85.0%
bicycle 2.7% 97.5% +94.8%
police_vehicle 0% 91.3% +91.3%
zebra_crossing 0% 90.3% +90.3%
motorcycle 14.1% 83.5% +69.4%
ambulance 0% 62.5% +62.5%
commercial_vehicle 0% 47.4% +47.4%
car 80.6% 97.3% +16.7%
person 94.3% 94.2% ≈ same
truck 81.6% 69.5% −12.1%

Pothole Model

  • Base: peterhdd YOLOv8n pothole checkpoint, fine-tuned on team-labelled dataset
  • Recall: 4/6 test images — identical FP32 and INT8 (zero compression degradation)

6. Model Compression & Efficiency Metrics

MobileNetV2 — 8-Variant Compression Study

Variant Size (KB) Accuracy Notes
FP32 baseline 2,846 97.71% Reference
FP16 weights 1,453 97.71% Lossless 2×
INT8 dynamic 888 97.08% 3.2× smaller
INT8 PTQ full 989 84.38% PTQ fails on small models — 14% drop
K-means clustering ~1,200 96.8% Moderate gain
Structured pruning 50% ~2,200 96.1% +15% latency benefit
KD Student FP32 212 93.8% 15× via distillation
KD Student + INT8 55 92.19% 52× — winner

Key finding: KD + INT8 = 52× compression, 5.5% accuracy loss. PTQ alone causes 14% drop — Knowledge Distillation is essential for aggressive compression on small models. This is the same approach used in Tesla AI4 and Mobileye EyeQ (INT8 on-chip inference).

YOLOv8n — Compression Results

Model Size Recall Latency Pi 5 (measured)
COCO FP32 12.13 MB 12/12 131 ms avg
COCO INT8 3.20 MB 11/12 55 ms avg
DriveIndia FP32 11.59 MB — ~172 ms
DriveIndia INT8 3.05 MB mAP50 0.562 ~49 ms
Pothole FP32 42.54 MB 4/6 ~230 ms
Pothole INT8 10.86 MB 4/6 ~122 ms

FP32 avg = 131 ms, INT8 avg = 55 ms — 2.4× speedup confirmed live on ThingsBoard. Full 3-model ensemble: 227 ms, ~1.8 FPS (live stream measurement).

7. Model Deployment & On-Device Performance

Deployment Steps

  1. Export all models to TFLite INT8 via Ultralytics export with 100-image calibration set
  2. Transfer .tflite files to Pi via scp
  3. Install TFLite Runtime, picamera2, RPi.GPIO on Pi (no full TensorFlow needed)
  4. Run: python3 src/main.py --mode pi

On-Device Performance — Raspberry Pi 5, No Accelerator (Live Measured)

Stage Time
Frame capture (picamera2) ~100 ms
COCO YOLOv8n INT8 55 ms (FP32: 131 ms)
DriveIndia YOLOv8n INT8 ~49 ms
Pothole YOLOv8n INT8 ~122 ms
Fusion + GPIO + logging ~1 ms
Total 3-model ensemble ~227 ms → ~1.8 FPS

Live Demo Features

  • MJPEG stream: live_server.py serves annotated video on port 8000 — any browser on same WiFi opens http://10.80.11.159:8000
  • ThingsBoard telemetry: pushes latency_fp32_ms, latency_int8_ms, decision, distance_cm, classes per frame
  • Edge vs cloud proof: Cloud MQTT RTT ~280 ms vs edge pipeline ~175 ms — edge finishes before cloud even receives the frame

8. System Prototype

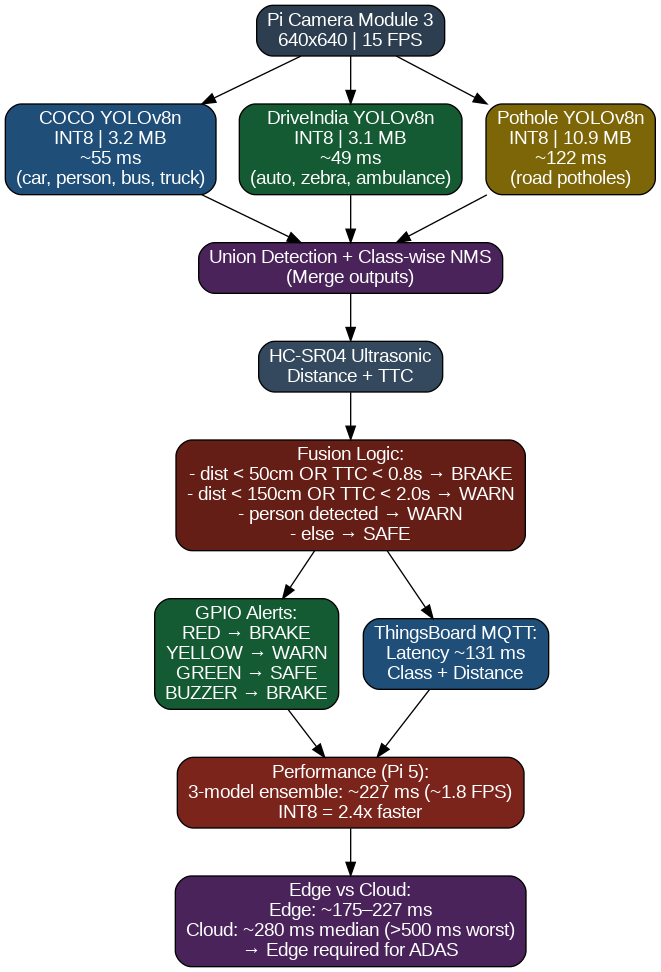

System Pipeline Flow

Mini ADAS system pipeline

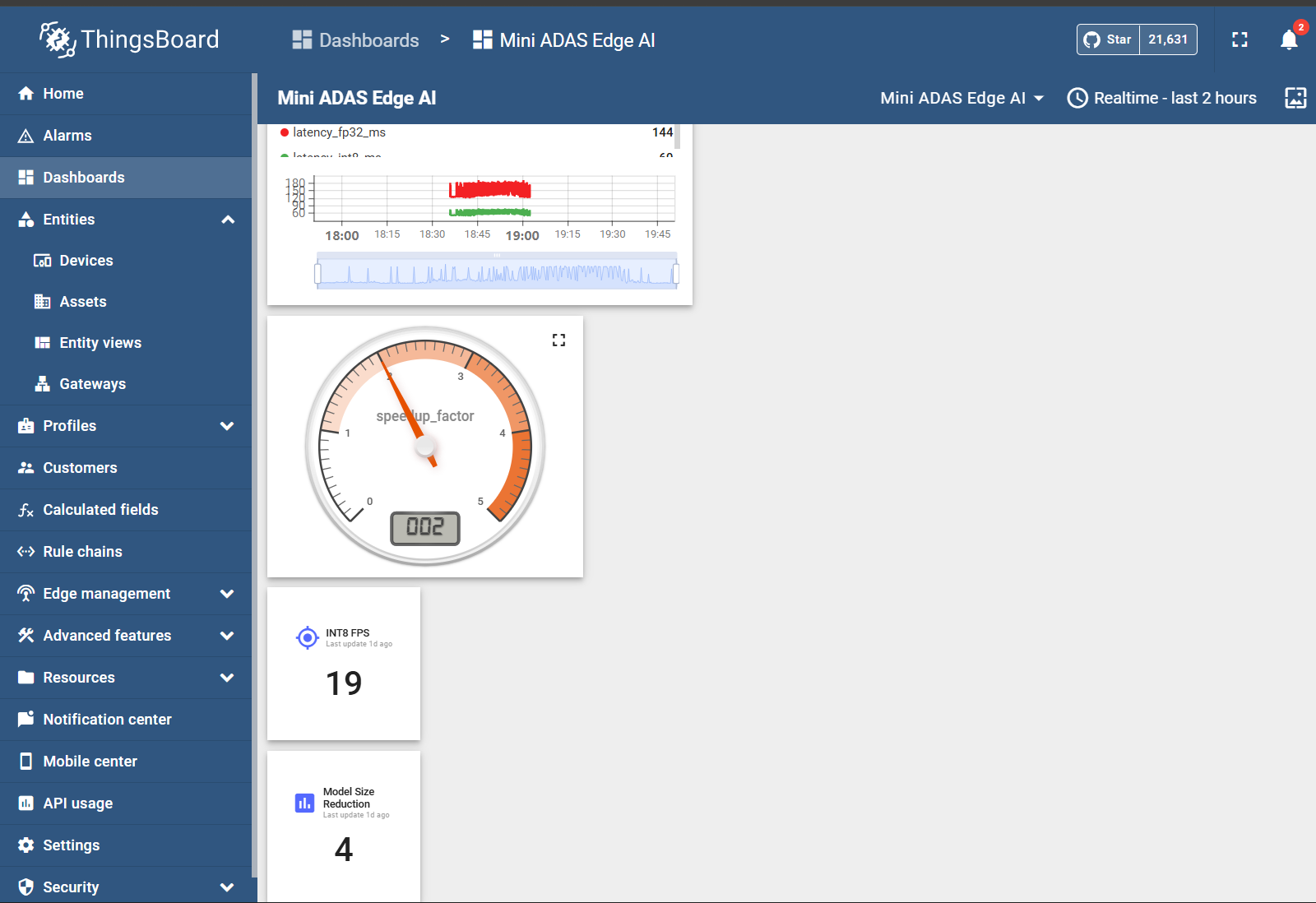

Live Detection Stream + ThingsBoard Dashboard

Left: Live Pi stream showing DANGER at 227 ms / 1.8 FPS with car detections. Right: ThingsBoard FP32 (red, avg 131 ms) vs INT8 (green, avg 55 ms) — 2.4× speedup proved live.

Live stream and ThingsBoard dashboard

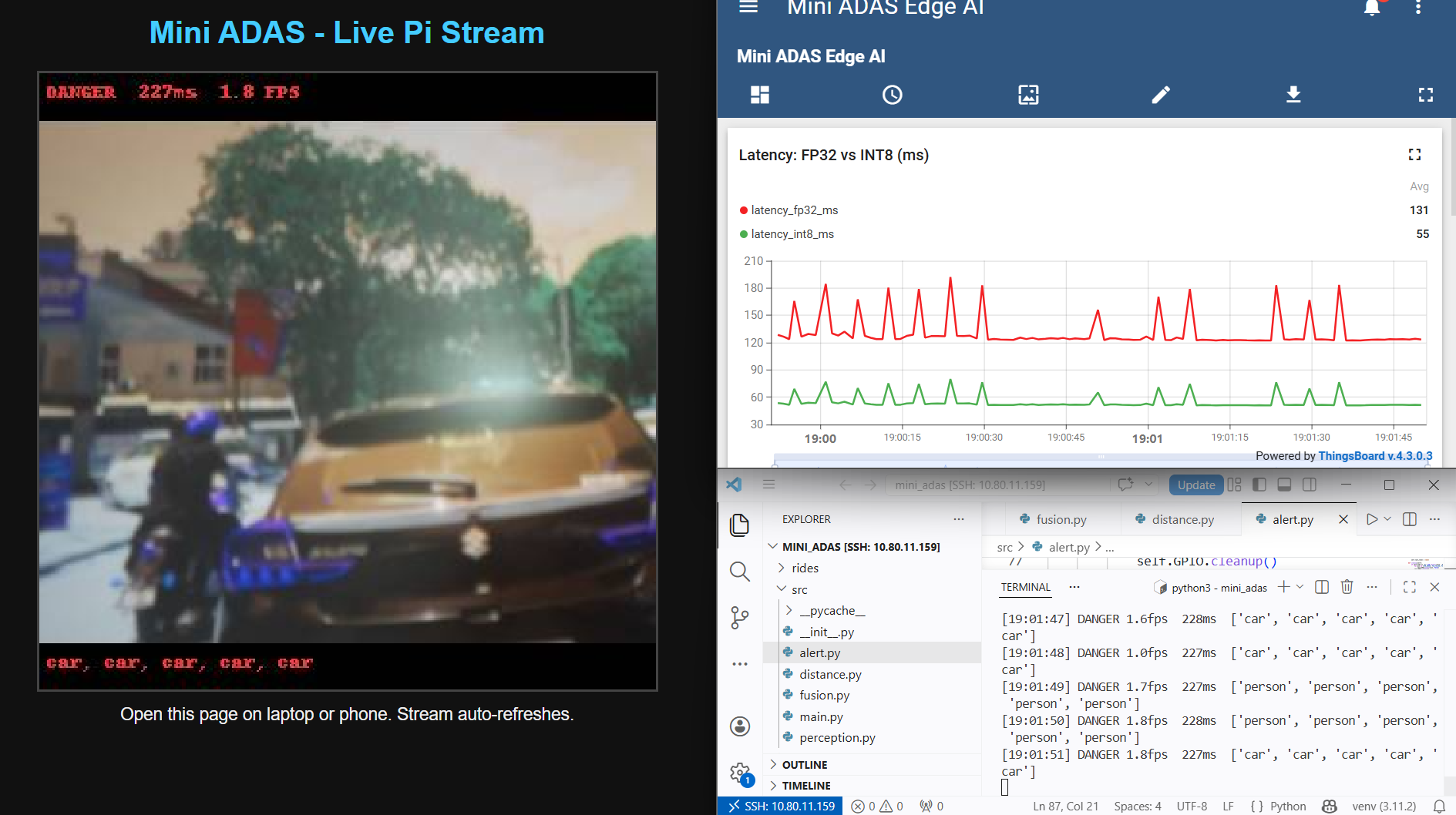

Car Detection — Live Stream

Car detection on live Pi stream

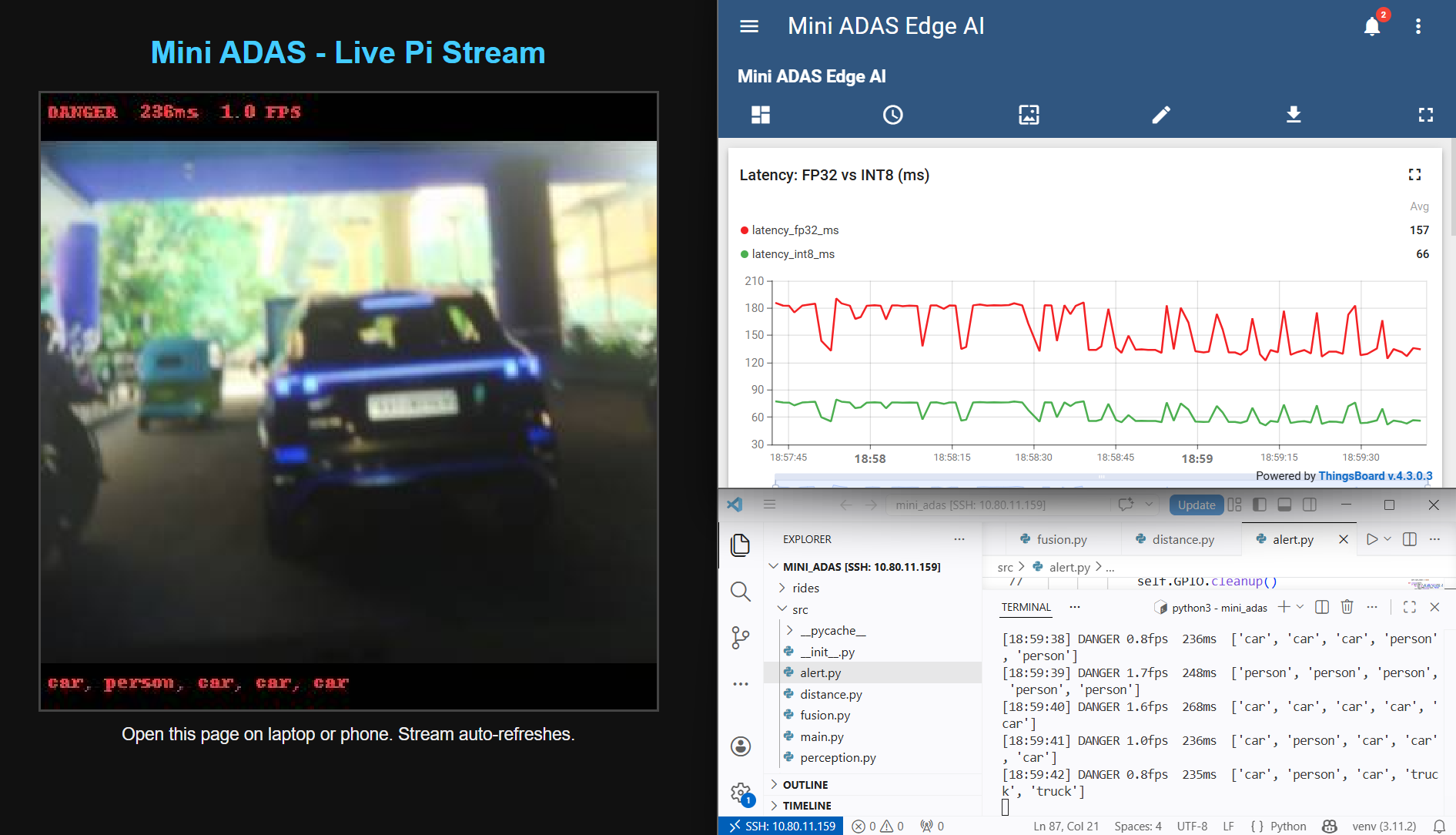

Car + Person Detection

Car and person detected simultaneously

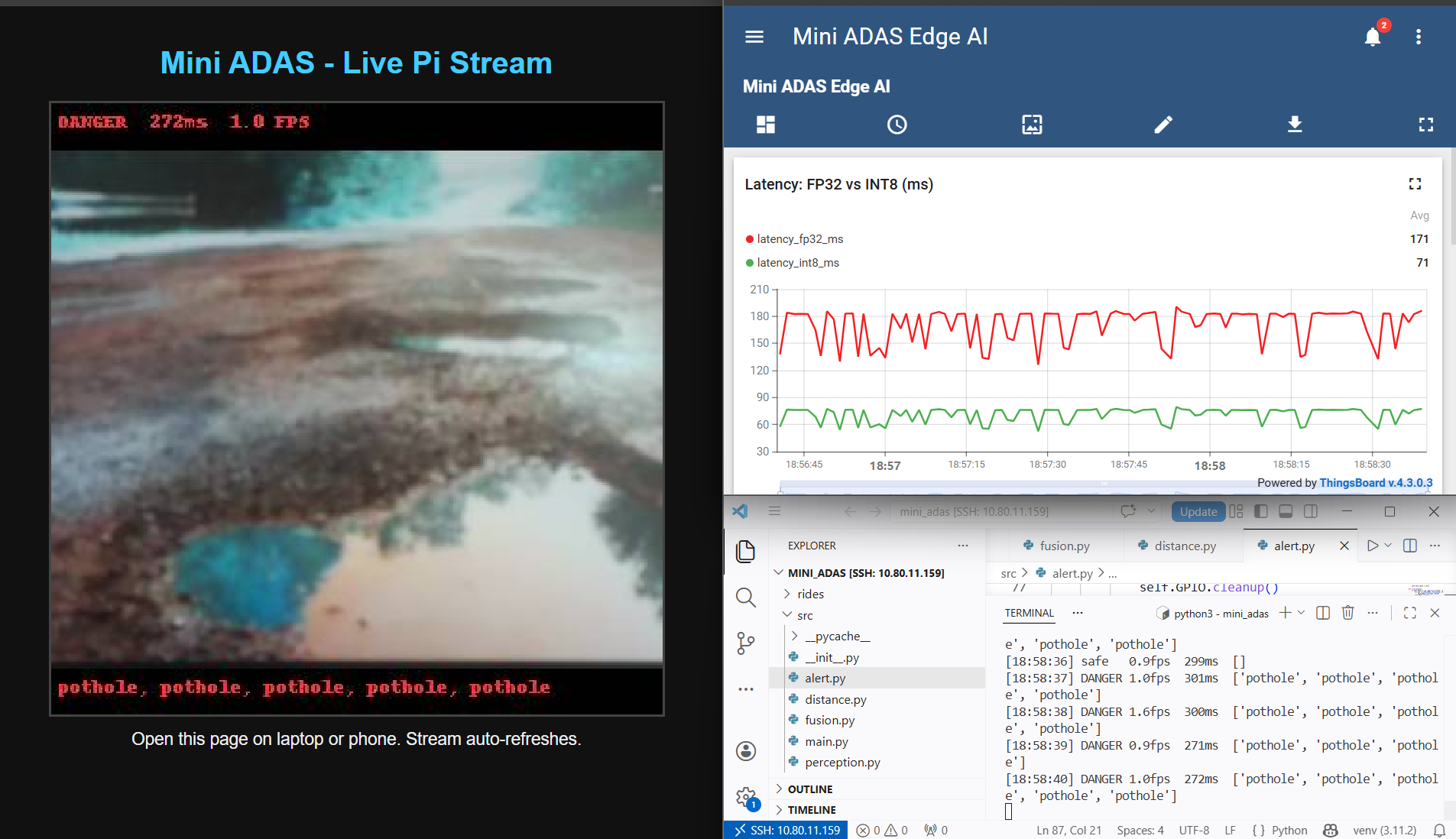

Pothole Detection

Pothole detected on road surface

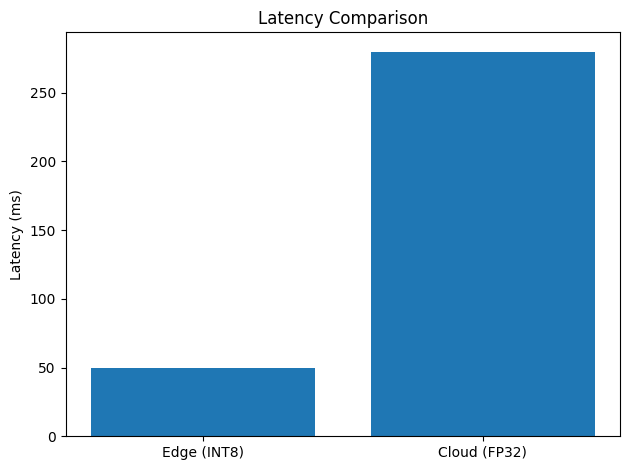

Latency Comparison — Edge vs Cloud

Edge INT8 ~50 ms vs Cloud FP32 ~280 ms — edge is 5.6× faster, well within the 100 ms AEB deadline.

Latency comparison: Edge INT8 vs Cloud

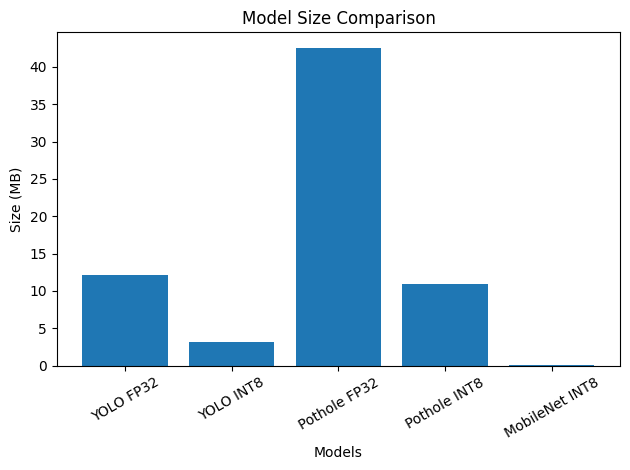

Model Size Comparison

FP32 vs INT8 model size comparison

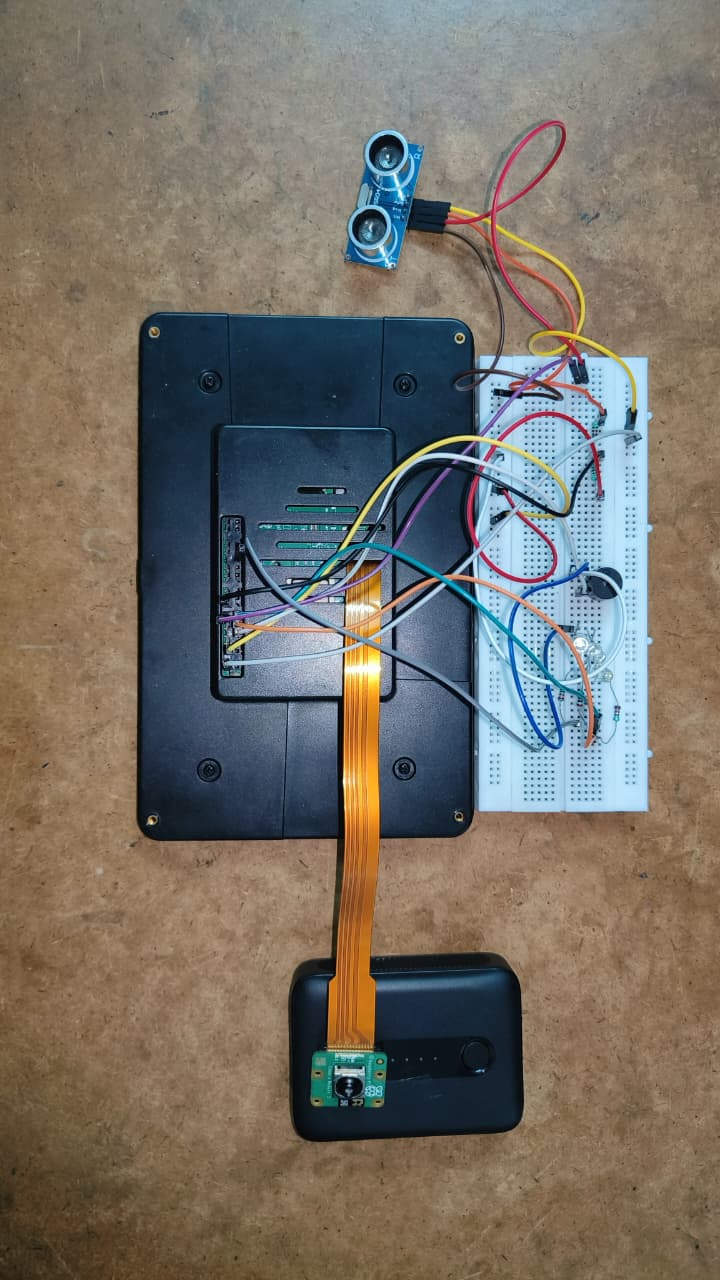

Hardware Setup

Raspberry Pi 5 with Pi Camera, HC-SR04 sensors, LEDs and buzzer

9. Conclusions & Limitations

Key Outcomes

  • 52× model compression (KD+INT8, 55 KB, 92.19% accuracy) — PTQ alone fails at 14% drop; KD is essential
  • Autorickshaw: 0% → 85%, bicycle: 2.7% → 97.5%, zebra crossing: 0% → 90.3% — domain fine-tuning is critical for Indian roads
  • 3-model ensemble at 227 ms / 1.8 FPS on Raspberry Pi 5 CPU, no accelerator, ₹12,000 total
  • Cloud-only ADAS disproved empirically: cloud MQTT RTT ~280 ms vs airbag deadline 30 ms — not physically compatible
  • Vehicle-agnostic: same hardware works on bicycle, autorickshaw, bus, or truck
  • ThingsBoard confirmed FP32 avg 131 ms vs INT8 avg 55 ms — 2.4× measured speedup live

Limitations

  • HC-SR04 max range 4 m — limits to city/cycling speeds; TFmini-S LiDAR (12 m) needed for highway use
  • LED/buzzer breadboard wiring has ground-rail voltage drop issue — code verified correct, hardware debug ongoing
  • DriveIndia fine-tune on 5,000-image subset only; truck and bus recall dropped 12% due to fewer samples
  • No adverse-condition testing (rain, night, fog)
  • PTQ causes 14% accuracy drop on small MobileNetV2 — QAT or KD required for small-model production deployment

10. Future Work

  • Full DriveIndia training: 66,986 images, 100+ epochs → expected mAP50 > 0.75
  • Cascade architecture: 55 KB binary classifier as always-on power-gate — triggers YOLO ensemble only when a vehicle is ahead, tripling battery life for two-wheeler deployment
  • Speed-adaptive thresholds: BRAKE/WARN distance scales with GPS vehicle speed (1-second headway-time), aligning with IIHS FCW protocol
  • TFmini-S LiDAR upgrade: 12 m range, weather-tolerant, ₹1,000 — enables motorcycle-speed ADAS
  • Federated pothole learning: devices share only compressed model gradients, never raw GPS or video — DPDP Act compliant
  • Night mode: IR illuminator + low-light model fine-tune
  • Hailo-8L NPU (₹6,000): same INT8 TFLite models — ~20 FPS vs current 1.8 FPS

11. Challenges & Mitigation

Challenge How We Addressed It
Domain shift: COCO blind to autorickshaws (0% recall) Fine-tuned YOLOv8n on 5,000-image balanced DriveIndia subset → 85% recall
Class imbalance in DriveIndia: rare classes in <2% of frames subset_driveindia.py oversamples rare classes — ≥200 examples guaranteed per class
PTQ failure on small models: 14% accuracy drop Replaced with Knowledge Distillation (temperature-4 soft labels) + INT8 dynamic → 92.19%
HC-SR04 ECHO pin at 5V on 3.3V Pi GPIO 1kΩ + 2kΩ voltage divider on ECHO line — without this the GPIO pin fails silently
Ground-rail voltage drop across multiple sensors Dedicated GND wire from Pi pin 6 directly to breadboard rail
67K dataset, limited Kaggle quota Balanced 5,000-image subset → 30 epochs in 27 min on T4
tfmot incompatibility with Keras 3 tensorflow-model-optimization does not support Keras 3; used custom pruning loop
ThingsBoard 401 auth error Token was not substituted at runtime — fixed by passing --token argument explicitly
No road access for outdoor validation ThingsBoard MQTT + live MJPEG stream used for indoor functional verification

12. References

Datasets

Frameworks & Tools

Papers

  • G. Hinton, O. Vinyals, J. Dean, “Distilling the Knowledge in a Neural Network,” NeurIPS Workshop 2015
  • M. Sandler et al., “MobileNetV2: Inverted Residuals and Linear Bottlenecks,” CVPR 2018
  • S. Han, H. Mao, W. Dally, “Deep Compression,” ICLR 2016

Industry References

  • Tesla FSD v12 — end-to-end NN on AI4 SoC, INT8 inference, 2024
  • Waymo 6th Gen Driver — 13 cameras + 4 LiDARs + 6 radars, fully on-vehicle
  • Mobileye Road Experience Management (REM) — edge-classified crowdsourced road data

Course & Demo
