Real-Time Privacy Preservation on Edge Devices

Team: Prasanna Mathavan, Sashish Jha, Tharun Kumar
Code: GitHub Repository

1. Problem Statement, Motivation & Objectives

Modern workplaces, homes, and public spaces increasingly rely on cameras for monitoring and video conferencing. These environments frequently capture sensitive personal information — human faces, laptops with visible screens, and mobile phones — without consent or awareness. Transmitting raw video feeds to cloud servers for processing raises significant privacy concerns, introduces latency, and creates exposure to data breaches.

Edge AI offers a compelling solution: inference runs entirely on-device, ensuring sensitive visual data is never transmitted off-premises. Real-time blurring of privacy-sensitive objects at the source eliminates the cloud dependency, reduces latency, and ensures compliance with privacy regulations such as GDPR.

Key Objectives:

Detect faces, laptops, and mobile phones in real-time video streams using YOLOv8
Apply selective blurring (Gaussian, Pixelation) to detected regions
Deploy the full pipeline on a Raspberry Pi 5 with acceptable real-time performance
Apply model compression techniques (ONNX export, Knowledge Distillation, Quantization) to meet edge constraints
Stream the processed video via a Flask MJPEG dashboard with live performance metrics

2. Proposed Solution

The system is a two-model, sequential inference pipeline running entirely on a Raspberry Pi 5. Frames are captured from a Pi Camera Module, passed through two YOLOv8 models (one for faces, one for laptops/mobiles), blurred in detected regions, and streamed live to any browser via Flask MJPEG.

Pipeline:

Pi Camera (Picamera2)
        ↓
  Frame Capture Thread
        ↓
  YOLOv8 Face Detection  ─────────────┐
        ↓                             │
  YOLOv8 Object Detection             │  Bounding boxes
  (laptop, mobile/TV)  ───────────────┘
        ↓
  Blur Engine
        ↓
  Blurred Frames
        ↓
  Flask MJPEG Stream → http://<pi-ip>:5000
        ↓
  Browser Dashboard (FPS, latency, CPU, RAM, detections)

Blur modes available: Gaussian, Pixelate, Median, Box Blur,Stack Blur

3. Hardware & Software Setup

Hardware

Software

4. Data Collection & Dataset Preparation

Dataset Sources

These datasets were used to infer the latency, IOU and MAP metrics.

Preprocessing Steps

COCO filtered to only images containing target classes (class IDs 63 and 72), reducing dataset from 118,000 → ~15,050 images
Labels remapped to unified class scheme: {0: face, 1: laptop, 2: tv}
WiderFace annotations converted to YOLO format (normalised xywh)
Custom 150 images labelled manually using edge impulse and added to validation split

5. Model Compression & Efficiency Metrics

Techniques Applied

Technique	Applied To	Details
Dynamic INT8 Quantization	TFLite models	Weight-only quantization applied without calibration dataset; used for initial benchmarking
Static INT8 Post-Training Quantization	TFLite models	Full integer quantization using calibration on ~50 representative frames for improved accuracy and stability
Input Resolution Reduction	Both models	320×320 (vs default 640×640) — ~4× fewer pixels, reducing computational load
Framework Comparison	ONNX vs TFLite	Performance evaluated across ONNX Runtime and TFLite Interpreter to determine optimal deployment backend

Compression Results ( deployed in RPI)

The dynamic quantization reduced only the size of the model not its latency . The static quantization reduced both the size and latency of the model .

Based on the comparative analysis across deployment formats, the TFLite implementation for static quantization demonstrated superior performance in terms of inference speed and efficiency. Therefore, the TFLite format was selected for deployment on the edge device.

6. Blurring Techniques Comparison & Selection

Techniques Evaluated

The following blurring techniques were evaluated for privacy filtering:

Gaussian Blur (single-pass and multi-pass)
Box Blur
Median Blur
Pixelation
Stack Blur

Each method was tested across different kernel sizes and configurations to analyze the trade-off between computational efficiency and visual privacy strength.

Performance Comparison (Representative Results)

Technique	Configuration	Avg Latency (ms)	FPS	CPU Usage (%)	Remarks
Gaussian Blur	k=51	~11.8	~84.7	~91	Good blur quality, moderate cost
Box Blur	k=51	~1.3	~768	~17	Extremely fast, weak blur
Box Blur	k=101	~1.5	~672	~20	Fast but low privacy strength
Median Blur	k=21	~15.0	~66.9	~98	Good edge preservation, high CPU
Median Blur	k=51	~27.2	~36.7	~99	Strong blur, expensive
Pixelation	block=10	~0.84	~1186	~20	Very fast, acceptable privacy
Pixelation	block=20	~0.81	~1234	~25	Fastest, slightly coarse output
Stack Blur	k=51	~1.78	~562	~85	Good balance of speed and smoothness
Stack Blur	k=101	~2.23	~447	~76	Slightly stronger blur, still efficient

Key Observations

Pixelation achieved the highest FPS with minimal computational cost, making it highly suitable for real-time applications
Box Blur was extremely fast but provided insufficient privacy protection
Gaussian Blur produced the best visual quality but was computationally expensive, especially for large kernels
Median Blur preserved edges well but consumed significant CPU resources
Stack Blur provided a strong balance between blur quality and computational efficiency

Final Selection & Design Decision

Based on the trade-off between latency, computational load, and privacy effectiveness, Pixelation and Stack Blur were selected as the primary blurring techniques for deployment.

Additionally, it was observed that the latency introduced by blurring operations is negligible compared to the inference latency of the AI models. As a result, the choice of blurring technique has minimal impact on the overall system performance.

This insight enabled the adoption of an adaptive blurring strategy, where different blur types are applied based on object characteristics without significantly affecting real-time performance:

Mobile phones → Pixelation (fast and sufficient privacy)
Laptops / screens → Stack Blur or moderate Gaussian Blur
Faces → Strong blur (Gaussian or Stack Blur depending on required intensity)

This adaptive approach ensures an effective balance between privacy preservation and computational efficiency, while maintaining real-time performance on edge devices.

7. Model Deployment & On-Device Performance

Deployment Steps

Trained and quantized model exported to TensorFlow Lite format (model.tflite) from Google Colab
Deployment package organised into modular structure:
- model/ → contains model.tflite
- src/ → contains inference script (main.py)
- requirements.txt → lists required dependencies
Deployment folder transferred to Raspberry Pi using SCP or external storage
Required dependencies manually installed on Raspberry Pi using: pip install opencv-python numpy tflite-runtime flask picamera2 –break-system-packages
TFLite model loaded in main.py using TensorFlow Lite Interpreter
Real-time inference pipeline executed directly using: python src/main.py
Detected privacy-sensitive objects (laptop, TV, mobile phone, face) and applied class-specific blurring
Processed output streamed via Flask server and viewed in browser interface
The same deployment pipeline was implemented using both sequential execution and parallel multi-threading approaches for performance comparison .

On-Device Performance Summary (Threading Model)

We then experimented with parallelizing the pipeline using three threads: one for camera capture, one for model inference, and one for display/encoding. Threading was evaluated on INT8 static quantised .tflite models.

Model	Format	CPU%	Combined FPS (Pi 5)
Sequential	`.tflite`	~30%	~7.0
Threading	`.tflite`	~90%	~6.0

Why Threading Backfired

Despite the Pi 5 having 4 cores, threading did not improve throughput. The root causes were:

1. Python GIL (Global Interpreter Lock) Python only allows one thread to execute bytecode at a time. Even with 3 threads, execution is interleaved — not truly parallel. While tflite’s invoke() does release the GIL at the C++ level, the surrounding Python overhead (pre/post-processing, decode, encode) still serialises on a single core.

2. Cache Thrashing The Pi 5’s L2 cache is 512KB per core. Each tflite model is ~3MB. Every context switch between threads evicts model weights from cache. When inference resumes it must reload weights from RAM, paying a cold-start penalty on every switch. Sequential mode never evicts weights mid-inference — the working set stays warm in cache across the full forward pass.

3. CPU% is Misleading psutil.cpu_percent() reports the average across all 4 cores: Sequential: 1 core ~100% + 3 cores idle → reported ~25-30% Threading: all 4 cores active but ~30% of cycles wasted on context switching overhead → reported ~90% Higher CPU% in threading does not mean more useful work — it means more overhead.

Trade-offs Observed

Parallel thread execution on Pi 5 caused CPU starvation — sequential was more stable and ~1 FPS faster
Both models competed for the same 4 cores and shared memory bus, increasing latency rather than reducing it
Thread context switches caused repeated cache misses on model weights, adding overhead that outweighed any parallelism benefit

Key finding: Parallel execution backfired on Pi 5 — sequential single-loop inference was faster, more stable, and used significantly less CPU.

8. System Prototype

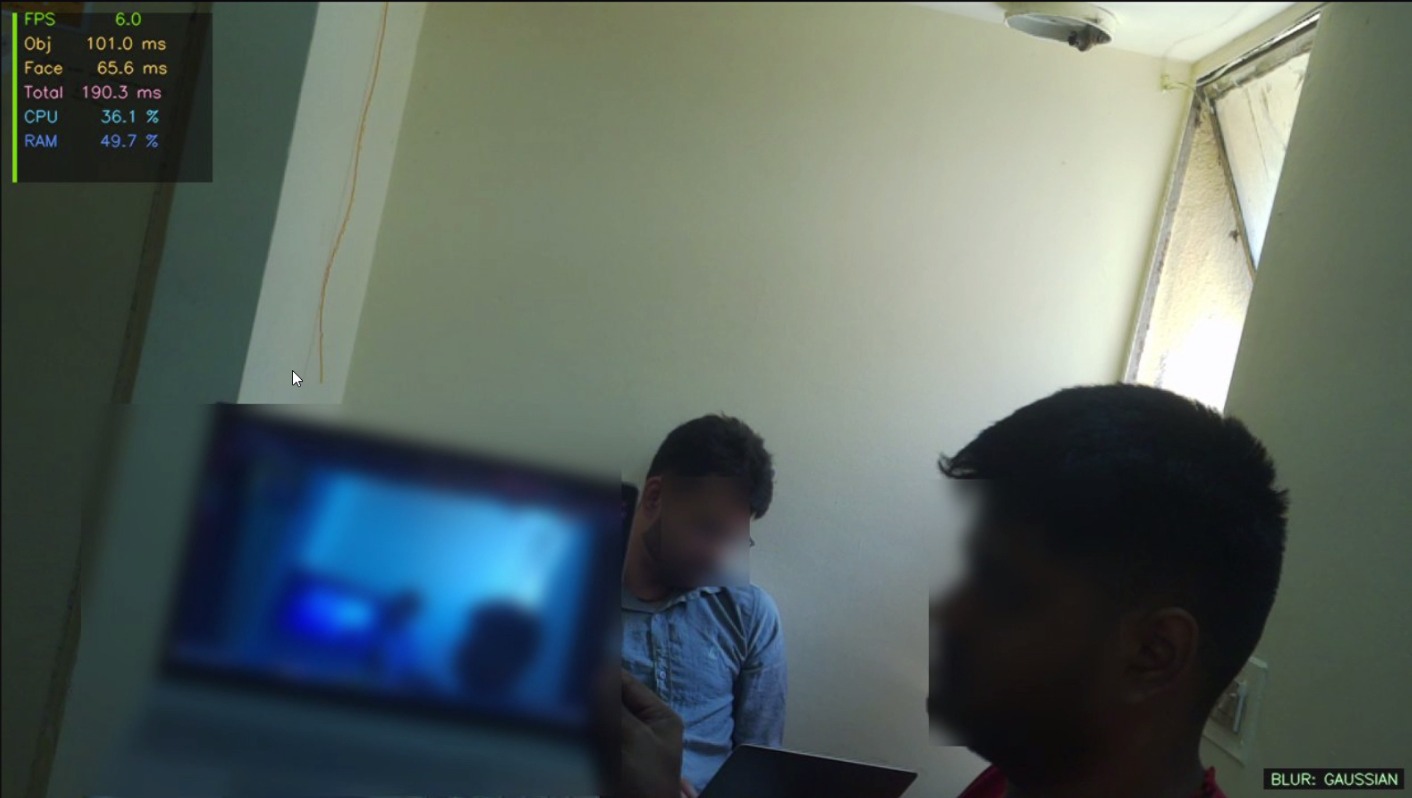

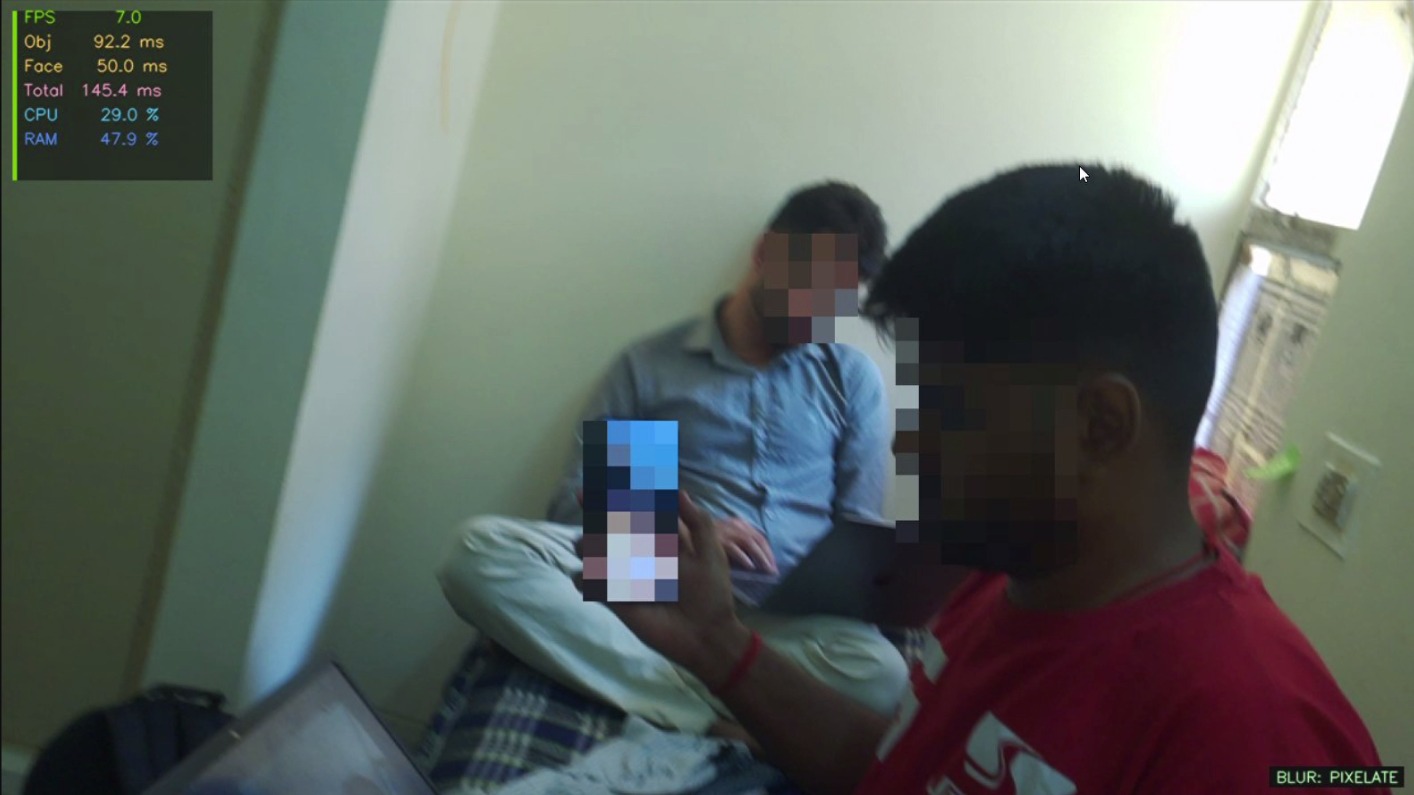

Gaussian blurring on laptops and faces Pixel blurring on phones and faces

9. Conclusions & Key Insights

Key Outcomes

Successfully deployed a privacy-preserving vision system on Raspberry Pi 5 using TFLite models.
Implemented a multi-model pipeline for detecting privacy-sensitive objects with adaptive blurring.
Achieved ~7 FPS using INT8 quantized models, enabling near real-time performance on edge devices.
TFLite provided the best performance compared to ONNX and PyTorch for edge deployment.
Multiple blurring techniques were implemented and analysed.

Key Insights

Model inference dominates total latency, while blurring contributes minimally.
Adaptive blurring is practical since it does not significantly affect performance.
Sequential execution outperforms parallel threading on Raspberry Pi due to CPU limitations.
INT8 quantization significantly improves FPS (~2x–3x) with acceptable accuracy trade-off.

10. Limitations & Future Scope

Limitations

Even at ~7 FPS, performance is below standard real-time video requirements (24 FPS).
System is limited by CPU-only execution (no GPU/NPU acceleration).
Parallel inference is inefficient due to CPU resource contention.
Detection accuracy depends on dataset quality and coverage.

Future Scope

Integrate hardware accelerators (TPU/GPU) to improve FPS.
Apply pruning and lightweight architectures for further optimization.
Develop a unified multi-task model to reduce pipeline latency.
Improve dataset diversity for better robustness and accuracy.
Expand blurring to includer other sensitive objects like documents,number plates etc.

11. Challenges & Mitigation

Challenge	Details	Mitigation
Parallel inference backfired	ThreadPoolExecutor caused CPU starvation on 4-core Pi 5	Reverted to sequential; Pi 5 lacks sufficient cores for true parallel YOLO
Train/deploy environment mismatch	Models developed on Colab CPU produced different confidence scores, latency, and FPS when deployed on Pi 5	Benchmarked and validated all metrics directly on-device; Colab used only for training, all performance numbers quoted from Pi 5 runs
Dataset incompatibility between models	The object model (COCO) and face model (WiderFace) use different annotation formats, class indices, and label schemas — a unified dataset combining both did not exist	Optimised each model independently on its native dataset; both models run in the same inference pipeline at runtime but are benchmarked, tuned, and evaluated separately — object detection metrics reported against COCO, face detection metrics reported against WiderFace

12. Future Work

Unified single-model — train one YOLOv8 model for all 3 classes (face, laptop, phone) to eliminate duplicate inference overhead; estimated 40–50% latency reduction
Quantization Aware Training (QAT) — INT8 from the start of training for better accuracy/speed trade-off
Streaming resolution — higher resolution output (1080p) with region-of-interest inference to maintain FPS
Additional sensitive classes — ID cards, whiteboards, passports

13. References

Jocher, G. et al. (2023). YOLOv8 by Ultralytics. https://github.com/ultralytics/ultralytics
Arnabdhar. YOLOv8-Face-Detection (HuggingFace). https://huggingface.co/arnabdhar/YOLOv8-Face-Detection
Hinton, G., Vinyals, O., Dean, J. (2015). Distilling the Knowledge in a Neural Network. NeurIPS Workshop.
Jacob, B. et al. (2018). Quantization and Training of Neural Networks for Efficient Integer-Arithmetic-Only Inference. CVPR.
Han, S. et al. (2015). Learning both Weights and Connections for Efficient Neural Networks. NeurIPS.
Redmon, J. & Farhadi, A. (2018). YOLOv3: An Incremental Improvement. arXiv:1804.02767.
Lin, T.-Y. et al. (2014). Microsoft COCO: Common Objects in Context. ECCV.
Yang, S. et al. (2016). WIDER FACE: A Face Detection Benchmark. CVPR.
Novel Compression Framework for YOLOv8: Structured Pruning and Channel-Wise Distillation. arXiv:2509.12918.
Systematic Literature Review of Lightweight YOLO Models. PeerJ, 2025.
ONNX Runtime Documentation. https://onnxruntime.ai/docs/
Picamera2 Documentation. https://datasheets.raspberrypi.com/camera/picamera2-manual.pdf
Raspberry Pi 5 Documentation. https://www.raspberrypi.com/products/raspberry-pi-5/

Video Presentation :- https://indianinstituteofscience-my.sharepoint.com/:f:/g/personal/mprasanna_iisc_ac_in/IgB0AUifHJHpQpazl4oW8iO9AbqCGy9n4O094sr7lrIEORo?e=OvjB5e
