Edge AI Traffic Analytics and violation Detection

Team: Ashish Kumar Verma, Uppugunduru Sriram Anush, Prince Kumar
GitHub: https://github.com/Prince-IISc-CalUniv/Edge-AI-Traffic-Analytics-and-violation-Detection

1. Problem Statement, Motivation and Objectives

India’s traffic landscape presents some of the most complex and chaotic road conditions in the world. With over 1.55 lakh fatalities in road accidents annually (MoRTH 2023), key violations such as helmetless riding, triple riding on two-wheelers, overspeeding, and poor road infrastructure such as potholes remain leading contributors to road injuries and deaths. Manual enforcement is labour-intensive, inconsistent, and cannot scale across the country’s vast road network.

Traditional AI-based traffic systems rely on cloud processing, which introduces high latency (200-500 ms round-trip), privacy concerns (video data leaving the premise), bandwidth costs, and single points of failure. Edge AI offers a compelling alternative: models compressed to run directly on low-cost devices like the Raspberry Pi can process video locally, in real time, with no internet dependency.

This project demonstrates a multi-task edge AI traffic monitoring system that performs three distinct detection tasks simultaneously on a single Raspberry Pi 5, using separate YOLOv8/v11 models compressed via NCNN and TFLite for real-time performance.

Key Objectives

• Detect helmet violations and triple-riding on two-wheelers using rider-to-bike spatial association logic
• Estimate vehicle speed via homography-based calibration and flag overspeeding; compute real-time congestion levels (LOS A-F) and volume statistics across vehicle categories
• Detect road surface potholes to assess road infrastructure quality
• Compress all models (pruning, FP16 quantization, NCNN/TFLite export) to achieve real-time inference (>2 FPS) on the Raspberry Pi 5
• Deploy an integrated, self-contained edge system using the Raspberry Pi Camera Module with no cloud or internet required

2. Proposed Solution

The system follows a three-pipeline architecture where each pipeline handles a distinct traffic monitoring task, and a unified inference script orchestrates all three on the edge device.

System Architecture

+---------------------------------------------------------------+
|                    RASPBERRY PI 5 (8 GB)                      |
|                                                               |
|  +----------+    +--------------------------------------+     |
|  | PiCamera |--> |       Unified Inference Engine       |     |
|  | Module   |    |  traffic_monitor.py                  |     |
|  +----------+    |                                      |     |
|                  |  +------------+  +----------------+  |     |
|                  |  | Pipeline 1 |  | Pipeline 2     |  |     |
|                  |  | Helmet &   |  | Traffic Speed, |  |     |
|                  |  | Triple-    |  | Volume, LOS,   |  |     |
|                  |  | Riding     |  | Congestion     |  |     |
|                  |  | NCNN FP16  |  | NCNN FP16      |  |     |
|                  |  +------------+  +----------------+  |     |
|                  |  +--------------------------------+  |     |
|                  |  |        Pipeline 3              |  |     |
|                  |  | Pothole & Traffic Sign Detect. |  |     |
|                  |  | ONNX FP16 / TFLite FP16        |  |     |
|                  |  +--------------------------------+  |     |
|                  +--------------------------------------+     |
|                           |                                   |
|               +-----------+-----------+                       |
|               v           v           v                       |
|         Annotated    Speed Plot   CSV Stats                   |
|         Video        (PNG)        (per-frame)                 |
+---------------------------------------------------------------+

End-to-End Pipeline

Data Collection   -->  Model Training   -->  Compression    -->  Deployment
(Roboflow, HF,         (YOLOv8n/v11n,       (NCNN FP16,        (Raspberry Pi 5,
 Kaggle datasets)       Kaggle GPU)          TFLite FP16)        PiCamera, CV2)

Data: Curated datasets from Roboflow Universe, HuggingFace (UVH-26), and Kaggle are downloaded, remapped to unified class schemas, merged, and split into train/val/test sets.

Model: YOLOv8-Nano and YOLOv11-Nano architectures are fine-tuned on Kaggle GPUs (T4/P100) with domain-specific augmentations (HSV jitter, mosaic, mixup, flip).

Compression: Trained .pt weights are exported to NCNN (FP16) and TFLite (FP16) formats, reducing model size by ~50% while maintaining >95% of original mAP.

Deployment: A single Python script loads all three compressed models, reads the PiCamera stream, runs detection + tracking (ByteTrack), and produces annotated video with real-time HUD overlays.

3. Hardware and Software Setup

Hardware

Software

4. Data Collection and Dataset Preparation

Pipeline 1 - Helmet and Triple-Riding Detection

Data Sources: 4 Roboflow Universe datasets merged into unified schema:

Total: ~8,418 images all remapped to the same 4-class schema.

Unified Class Schema (4 classes):

Remapping Process:

• Each dataset has its own mapping preset (e.g., helm -> helmet, pemotor -> motorcycle)
• Invalid/ambiguous classes (e.g., invalid, pejalan) are dropped
• All datasets are merged into a single train/val/test split with deduplication

Pipeline 2 - Overspeeding, Volume and Congestion

Data Source: UVH-26 Dataset (HuggingFace)

• Indian urban traffic dataset with 26 vehicle classes
• COCO-format annotations converted to YOLO format
• 50% subset sampled (balanced across categories)

Preprocessing:

1. Downloaded COCO annotation JSONs from HuggingFace Hub
2. Parallel bulk-downloaded images (8 threads)
3. Converted COCO bounding boxes to YOLO normalized format
4. Created data.yaml with train/val splits (85/15 ratio)
5. Verified annotations with visual sanity checks

Pipeline 3 - Pothole Detection

Data Source: Pothole Image Dataset (Kaggle)

• Curated dataset focusing on road surface anomalies and structural damage
• Bounding box annotations representing varied lighting and weather conditions

Preprocessing:

1. Downloaded and extracted raw image data and annotations from Kaggle
2. Re-mapped all target annotations strictly to ID 0 (pothole) to ensure a unified single-class detection schema
3. Converted bounding boxes to YOLO normalized format
4. Segmented the dataset into standard splits: 80% Train / 15% Validation / 5% Test
5. Generated the data.yaml configuration file required for Ultralytics YOLOv8 training
6. Verified dataset integrity with visual sanity checks before training

5. Model Design, Training and Evaluation

Pipeline 1 - YOLOv8-Nano (Helmet and Triple-Riding)

Two-Stage Training Strategy:

1. Stage 1 (30 epochs @ 320px): Fast convergence at low resolution, batch size 32
2. Stage 2 (50 epochs @ 640px): Fine-tuning at full resolution for small object accuracy, batch size 16

Training Platform: Kaggle (T4 GPU)

Pipeline 2 - YOLOv11-Nano (Traffic Detection)

Training Platform: Kaggle (T4 GPU)

Pipeline 3 - YOLOv8-Nano (Pothole Detection)

Training Platform: Kaggle (T4 GPU)

Evaluation Metrics

6. Model Compression and Efficiency Metrics

Compression Techniques Applied

1. NCNN Export (FP16 Quantization)

Used for Pipelines 1 and 2, optimized for ARM CPU inference.

model = YOLO("best.pt")
model.export(format="ncnn", imgsz=640, half=True)

• Weight precision: FP32 to FP16 (50% size reduction)
• NCNN backend: Vulkan-accelerated on Cortex-A76
• No calibration dataset required (unlike INT8)

2. ONNX Export (FP16)

Used for Pipeline 3 and generated via Pothole_03_export_quantize.py. ONNX was selected as the final portable cross-platform format for edge pothole detection, resulting in the provided best.onnx file.

model.export(format="onnx", imgsz=640, half=True)

Weight precision: FP32 to FP16 Final Output: best.onnx (used by Pothole_04_edge_inference.py) TFLite Note: TFLite export was initially evaluated during development, but ONNX provided better native integration and performance stability for our specific edge deployment in this pipeline.

Note: INT8 quantization was initially attempted across our pipelines but abandoned because the calibration process requires loading 700+ representative images into RAM simultaneously, causing Out-of-Memory errors on standard PCs. FP16 provides nearly identical speedup without the calibration overhead.

Compression Results

Trade-offs

• FP16 vs INT8: FP16 retains >99% accuracy with a 50% size reduction. INT8 could offer a 75% reduction but requires large calibration datasets, causes memory bottlenecks during export, and risks higher accuracy loss on smaller objects (like distant potholes or helmets).
• NCNN vs TFLite vs ONNX: NCNN was used for Pipelines 1 & 2 as it is ~15-20% faster on the ARM Cortex-A76 (Pi 5) due to NEON SIMD optimizations. TFLite and ONNX were used for Pipeline 3 to provide cross-platform portability for varying edge accelerators.
• Memory: Peak RAM usage is approximately 1.2 GB when all three integrated models (Traffic, Helmet, and Pothole) are loaded simultaneously well within the Raspberry Pi 5’s 8 GB capacity.

7. Model Deployment and On-Device Performance

Deployment Steps

1. Flash Raspberry Pi OS (64-bit) to MicroSD card
2. Install dependencies:

   pip install -r requirements_rpi.txt


3. Copy compressed models to the Pi:
   • helmet_ncnn_model/ - Pipeline 1 (helmet detection)
   • best_ncnn_model/ - Pipeline 2 (traffic/vehicle detection)
   • best.onnx - Pipeline 3 (pothole model)
4. Run homography calibration (one-time setup):

   python deployment/calibrate_homography.py --image reference_frame.jpg --width 7.0 --length 20.0


5. Launch the unified inference:

   python deployment/traffic_monitor.py \
       --source picam \
       --model best_ncnn_model \
       --helmet-model helmet_ncnn_model \
       --pothole-model best.onnx \
       --speed-limit 60 \
       --calib calibration.json


On-Device Performance (Raspberry Pi 5, 8 GB)

Real-Time Behaviour

The system processes live PiCamera frames in a continuous loop:

1. Main model (traffic detection with ByteTrack tracking) runs every frame
2. Helmet model runs every 1 second (configurable via HELMET_FRAME_INTERVAL_S)
3. Speed estimation uses homography to project pixel centroids to real-world coordinates, computing speed over a sliding window of 10 positions per tracked vehicle
4. Congestion classification uses the Level-of-Service (LOS) A-F scale based on vehicle density and average speed within the calibrated ROI
5. HUD overlay displays real-time FPS, vehicle count, average speed, congestion level, and violation counts

8. System Prototype (Pictures / Figures)

Vehicle Detection and Tracking

The main traffic model detects and classifies 14 vehicle categories in real time using ByteTrack for persistent multi-object tracking:

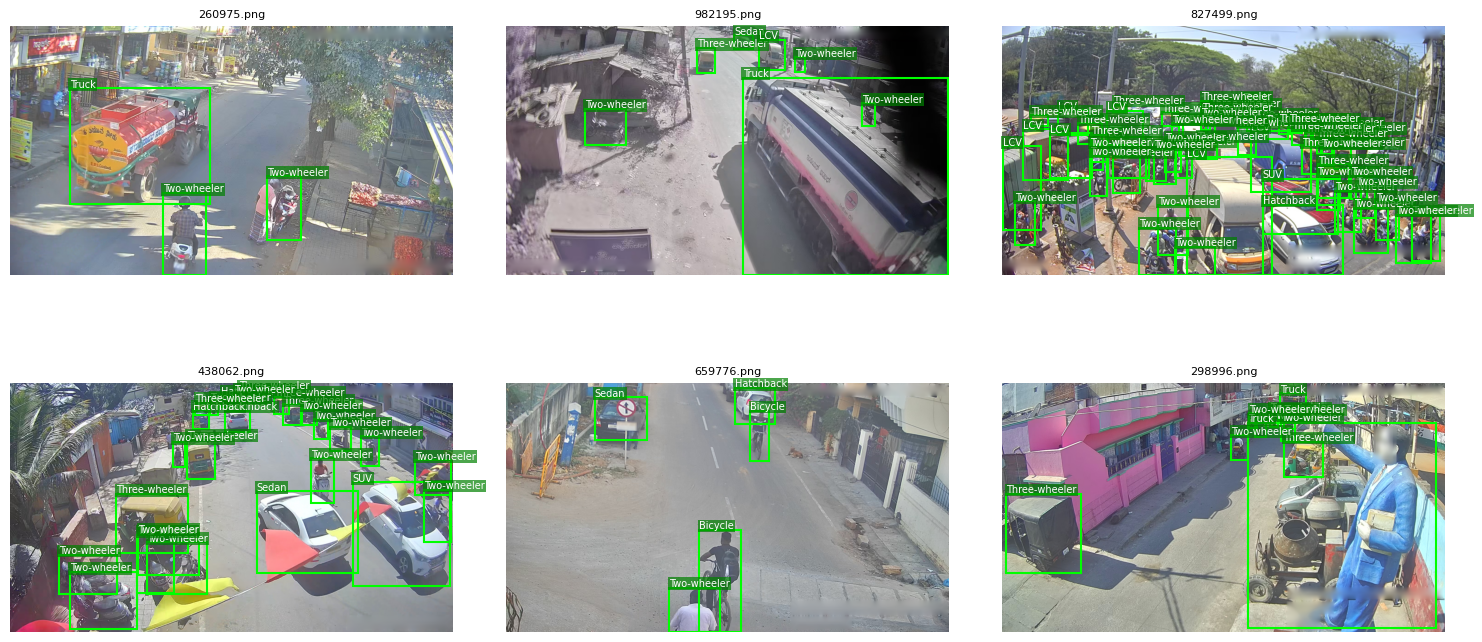

Figure 1: Vehicle detection results from Pipeline 1 showing classification of Two-wheelers, Sedans, Trucks, SUVs, Three-wheelers, and other vehicle categories on Indian urban traffic scenes.

Helmet Violation Detection

The helmet detection pipeline identifies motorcycles, associates riders using IoU-based spatial logic, and flags violations:

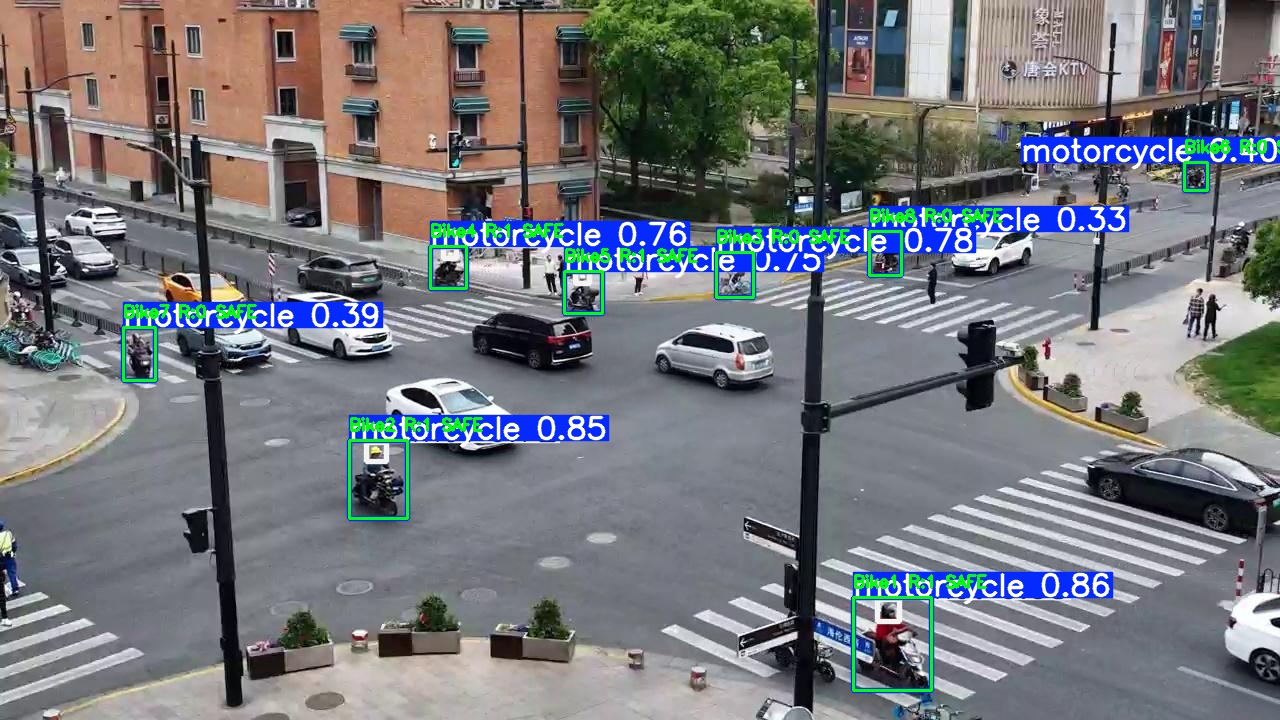

Figure 2: Helmet and rider detection at a traffic intersection showing motorcycle-rider association.

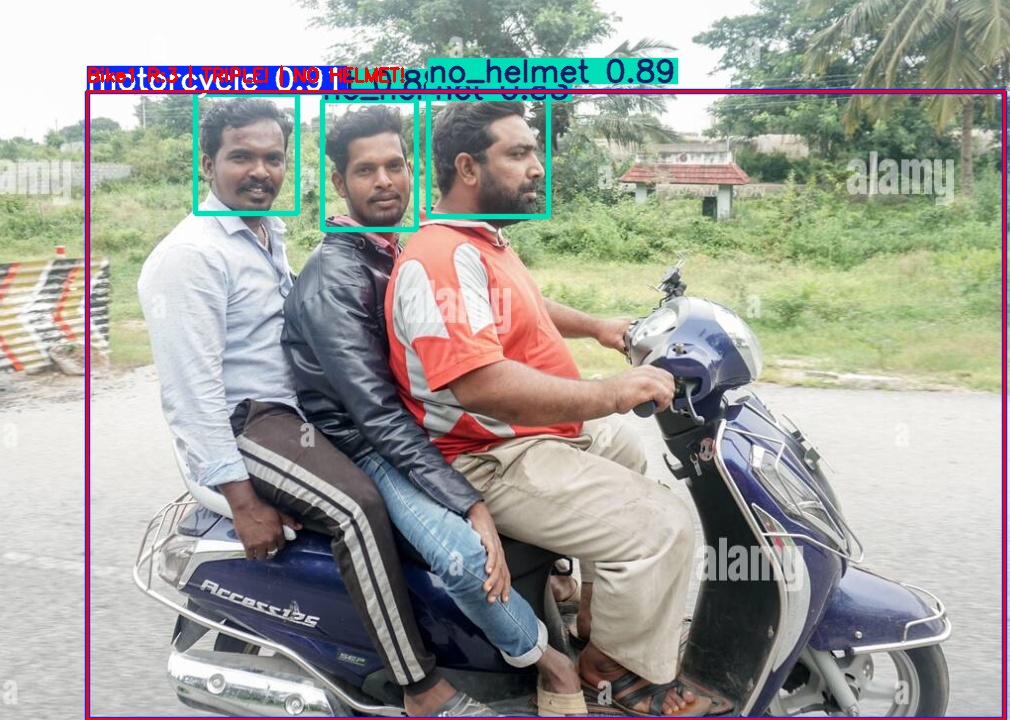

Figure 3: Detailed violation report showing helmet compliance status and triple-riding detection with color-coded bounding boxes (green = safe, red = violation).

Speed Distribution Output

The system generates a speed distribution histogram after each run, showing the number of vehicles at each speed bin with overspeeding highlighted in red:

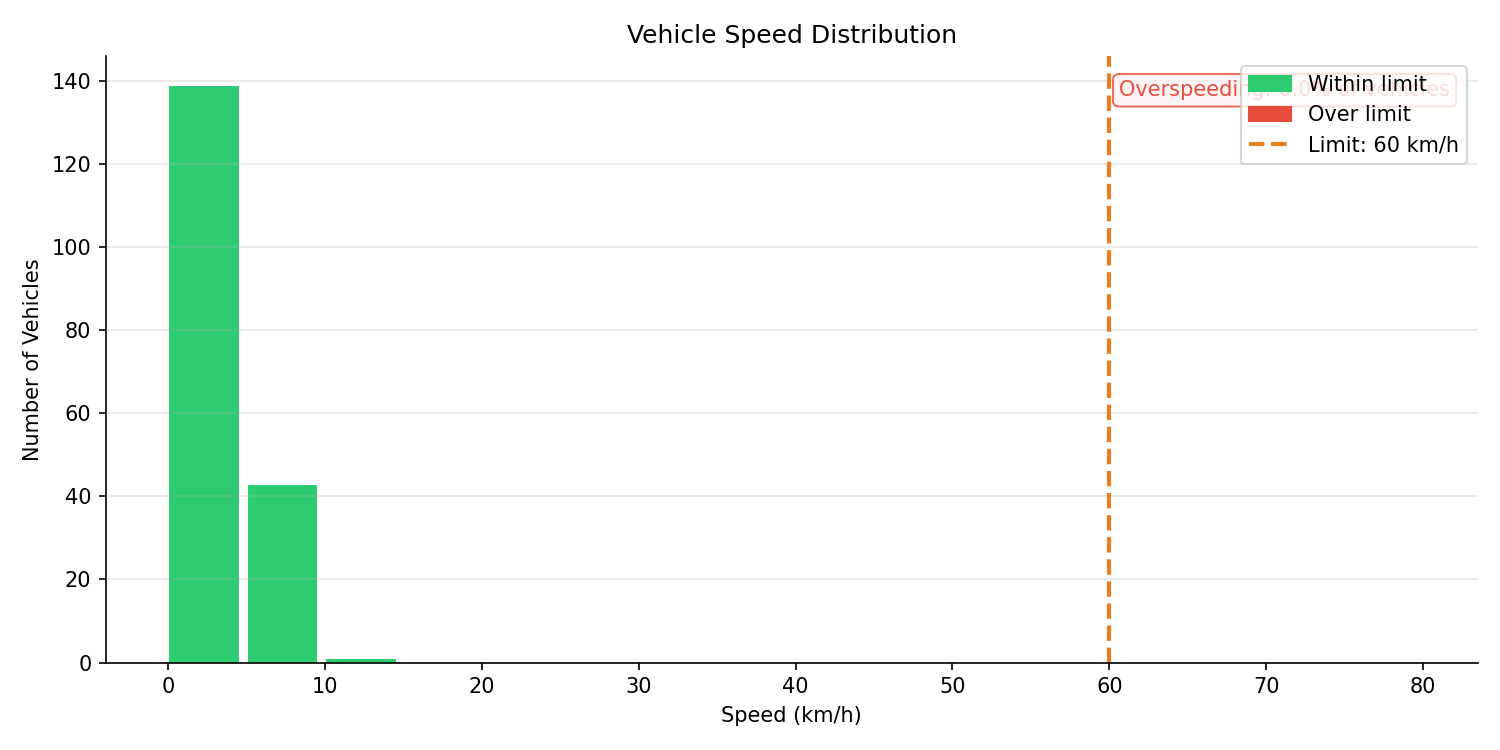

Figure 4: Vehicle speed distribution from a sample run. Green bars indicate vehicles within the 60 km/h limit; red bars would appear for overspeeding vehicles. The dashed orange line marks the configurable speed limit.

Pothole Detection

Pipeline 3 detects road surface potholes for infrastructure quality assessment:

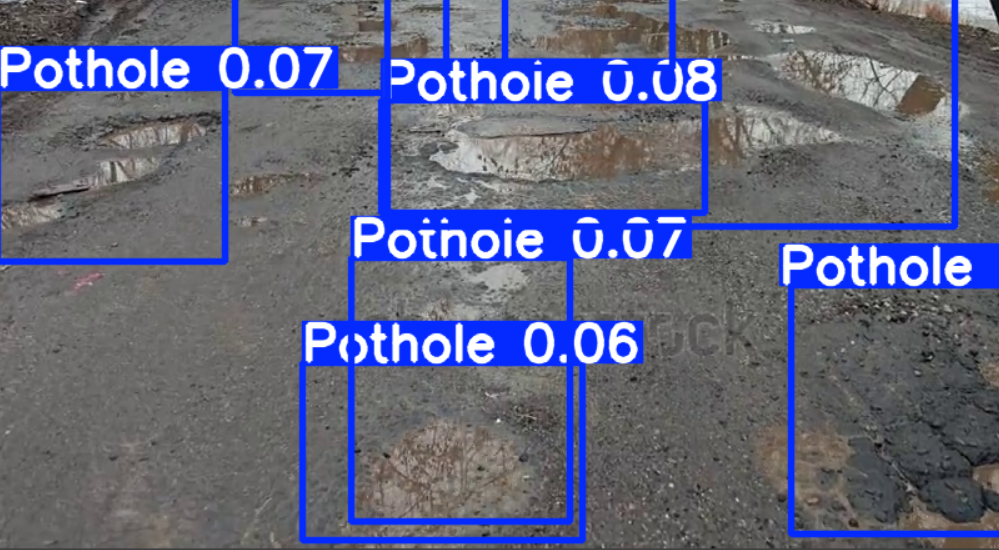

Figure 4: Pothole detection on road surface showing multiple detected potholes.

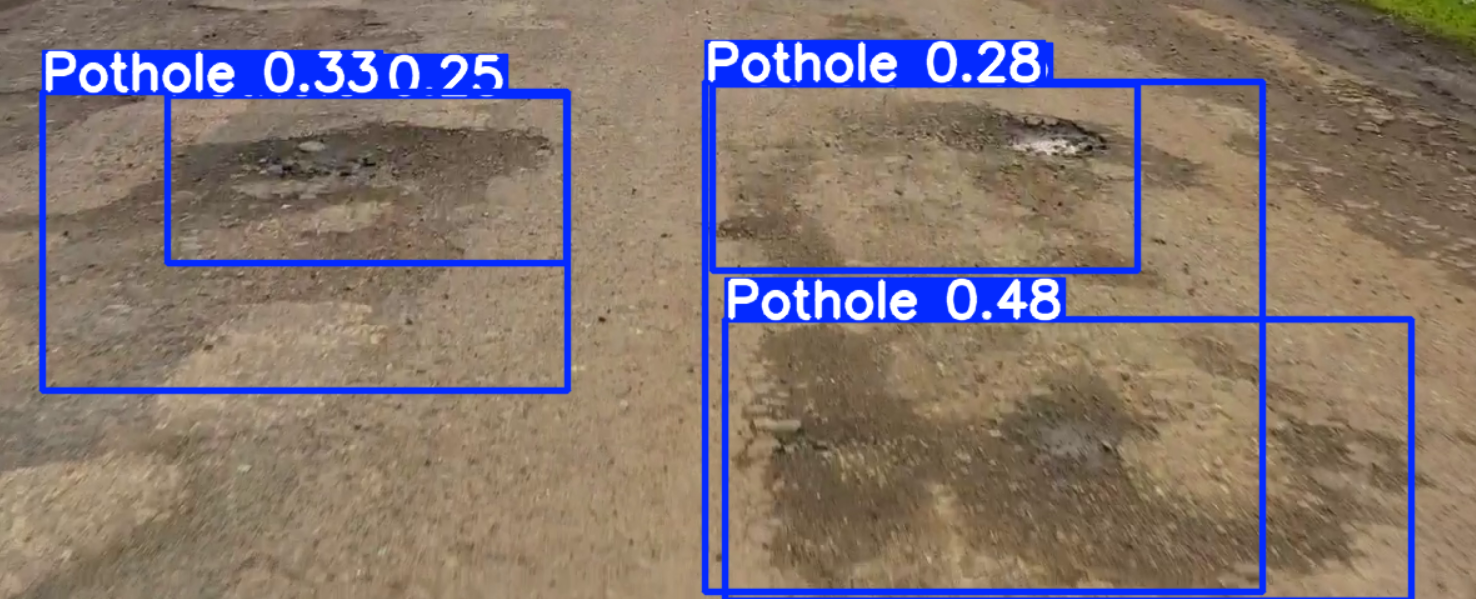

Figure 5: Pothole detection from video feed with bounding box annotations and confidence scores.

CSV Statistics Output

Per-frame statistics are logged to a CSV file with columns:

frame, t_s, vehicles_in_roi, avg_speed_kmh, los, overspeeding,
total_unique, helmet_bikes, helmet_violations, triple_violations

This enables post-hoc analysis, plotting trends over time, and generating aggregate reports.

Hardware Setup

The deployment setup consists of the Raspberry Pi 5 connected to the PiCamera Module via CSI ribbon cable, with an HDMI display for real-time visualization. The system runs headlessly (via SSH) in production, saving output to disk.

9. Conclusions and Limitations

Key Outcomes

1. Successfully deployed three YOLO models simultaneously on a single Raspberry Pi 5, demonstrating that multi-task traffic monitoring is feasible on consumer-grade edge hardware (~$80 device).

2. NCNN FP16 quantization preserved >99% of mAP while halving model size. The NCNN backend outperforms TFLite on the Pi 5’s Cortex-A76 due to NEON SIMD optimization.

3. Homography-based speed estimation provides calibrated real-world speed measurements without requiring radar or LIDAR, using only a single camera and a one-time 4-point calibration.

4. ByteTrack multi-object tracking enables persistent vehicle IDs across frames, which is essential for accurate speed computation and avoiding double-counting in volume statistics.

5. The rider-to-bike association algorithm (IoU + shrink-box heuristic) correctly identifies triple-riding and helmet violations by spatially mapping detected heads/helmets to motorcycle bounding boxes.

Limitations

• Frame rate (2-3.5 FPS) is sufficient for monitoring but not for capturing very fast-moving vehicles at highway speeds; a higher-end edge device (e.g., Jetson Nano) would be needed for 15+ FPS
• Speed estimation accuracy depends heavily on the quality of the homography calibration; perspective distortion at the edges of the frame introduces error
• Helmet model runs at 1 Hz (not every frame) to maintain overall throughput, which means some violations may be missed during the inter-inference gap
• No night-time / low-light testing was performed; performance degrades significantly under poor illumination
• Pothole model integration is prepared in the code but not fully active in the unified pipeline (placeholder for future work)
• No real-world deployment in an actual traffic intersection was conducted; all testing used recorded video feeds

10. Future Work

• INT8 quantization with proper calibration pipeline: Use a small representative calibration dataset (100-200 images) loaded in batches to enable INT8 quantization without OOM, potentially doubling inference speed
• Jetson Nano / Orin deployment: Leverage GPU-accelerated TensorRT for 15-30 FPS real-time performance
• Night-time augmentation: Add synthetic low-light, headlight glare, and rain effects to the training data for 24/7 operational capability
• Alert system integration: Add GPIO-based alert triggers (buzzer, LED panel) and MQTT/HTTP notifications for detected violations
• Multi-camera stitching: Extend to handle 2-4 camera feeds for full intersection coverage
• Dashboard web UI: Build a lightweight Flask/FastAPI dashboard served locally on the Pi for visualizing live statistics
• License plate recognition: Add an ANPR module for linking violations to specific vehicles
• Federated learning: Enable model updates across multiple deployed Pi units without centralizing video data
